All Bicycles Now Available Fully Built on Request!

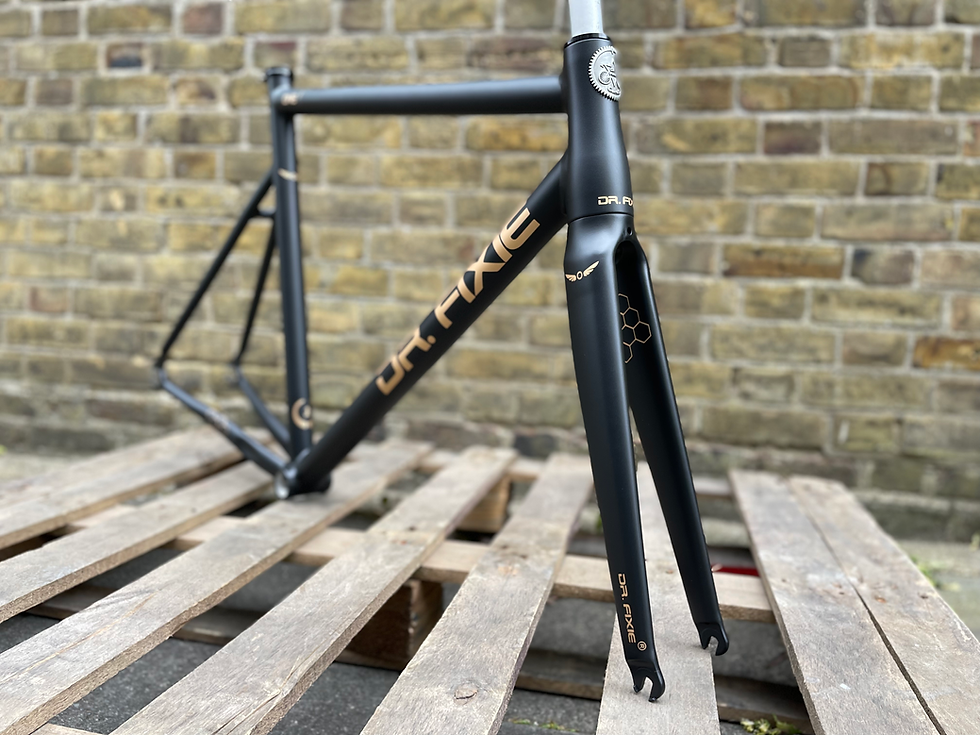

Introducing the Dr. Fixie ONE, designed for the modern city rider seeking style and performance in one sleek package. Bronze & black colours. An accurate combination and selection of colours with a matte finish.
Thinking about having your liked colours? YES! WE CAN CUSTOMIZE THE COLOR TO YOUR LIKING. Contact us with your request.
Components may change without notice to improve quality. You can customize our bikes to suit your style, including handlebars and more, based on your budget. Contact us for a personalized quote.
For a 50CM frameset, please contact us for a special request before completing your purchase.
Welcome to the new generation of fixie styles.
Dr. Fixie®
Completed bike standard build:
Crankset: Miche X-Press 48T.
Pedals: SHIMANO FLAT PD-EF102.
Cog: Fixed 16T
Wheels: Front and rear Gipiemme Aluminum 30mm Black profile
Tyres: Kenda Kriterium or Schwalbe 700x25C Anti-punctures.
Handlebar: Cinelli Wand.
Stem: Cinelli 31.8mm.
Supplied with front brakes
Saddle: Cinelli C-wing
Seat post: CINELLI Vai
SPECIFICATION
- Frame: Double butted AL6061 aero aluminum with 1-1/8" - 1.5" tapered head tube.
- Aero section tubes
- Grouted and smoothed pipe welds
- Integrated headset (not included)
- Internal diameter seat tube 31,6mm
- 68mm Bottom bracket shell
- BSA cup thread 1.37 "x 24T
- Track hub 120mm
- Max Clearance at rear Tyre Section: 38mm
- Frame weight 1560g (+/- 50g)
- 34,9mm seat post clamp
- Fork: 1-1/2” to 1-1/8" tapered. Carbon fork w/ alloy steerer
Would suit 700c / QR Wheel Set-Ups...
Aluminium Tapered Steerer - Ahead Threadless - 28.6mm (1 1/8") Top x 40mm (1 1/2") Crown
Steerer Length: 300mm
Max Clearance at Tyre Section: 38mm
Rim Brake Only
For Quick-Release Axles - Standard 100mm Spacing
No Mudguard Eyes
Weight: 690g
GEOMETRIES
Unique and exclusive frame with geometries and lines specifically designed for fixed gear criterium racing. This frame is intentionally crafted without pre-drilled holes for a rear brake. Excellent performance on the track with the right balance of stiffness and strength combined with maximum reliability and light weight.
FRAME SIZE 56mm:
CC - 510 mm
CF - 560 mm
F - 620 mm
L - 565 mm
P - 390 mm
T - 130 mm
FRAME SIZE 54mm:
CC - 490 mm
CF - 540 mm
F - 610 mm
L - 535 mm
P - 390 mm
T - 110 mm
FRAME SIZE 58
CC - 530 mm
CF - 580 mm
F - 630 mm
L - 575 mm
P - 390 mm
T - 150 mm
