All Bicycles Now Available Fully Built on Request!
Last unit available in 54cm size.

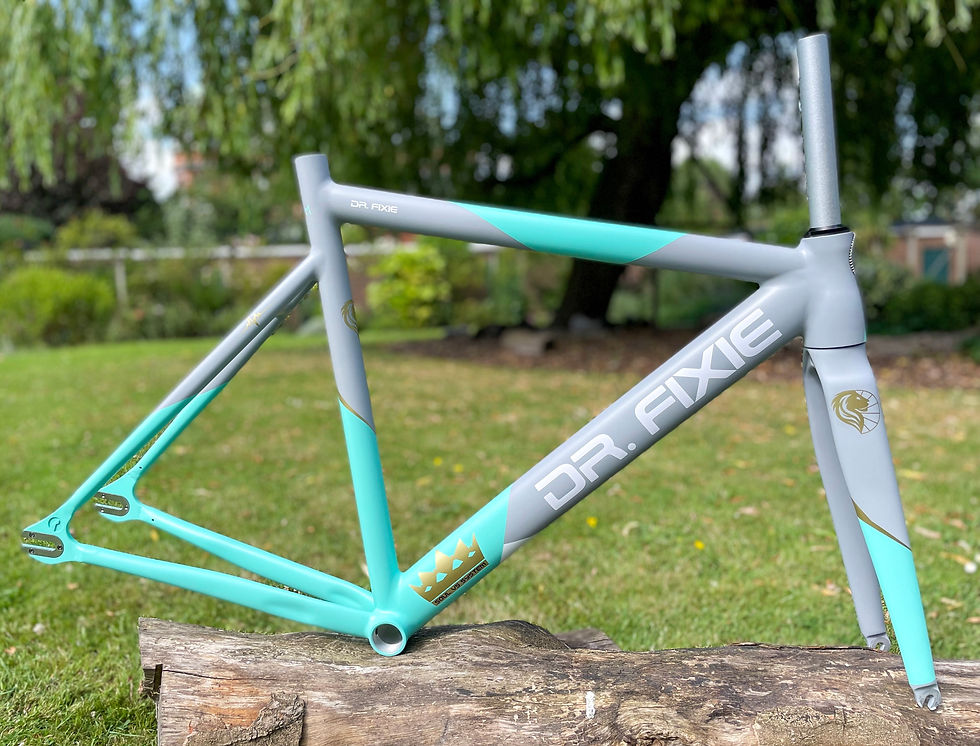

This unique frameset is no more in production. Light grey, turquoise, gold & white colours. Everything in this bike have been chosen with care so it’s gets the maximum expression by itself.
Components may change without notice to improve quality. You can customize our bikes to suit your style, including handlebars and more, based on your budget. Contact us for a personalized quote.
Welcome to the new generation of fixie styles.
Completed bike standard build:
Crankset: Miche X-Press 48T.
Pedals: SHIMANO FLAT PD-EF102.
Cog: Fixed 16T
Wheels: Front and rear Gipiemme Aluminum 30mm Black profile
Tyres: Kenda Kriterium or Schwalbe 700x25C Anti-punctures.
Handlebar: Cinelli Wand.
Stem: Cinelli 31.8mm.
Supplied with front brakes
Saddle: Cinelli C-wing
Seat post: CINELLI Vai
SPECIFICATION
- Frame: Double butted AL6061 aero aluminum with 1-1/8" - 1.5" tapered head tube.
- Aero section tubes

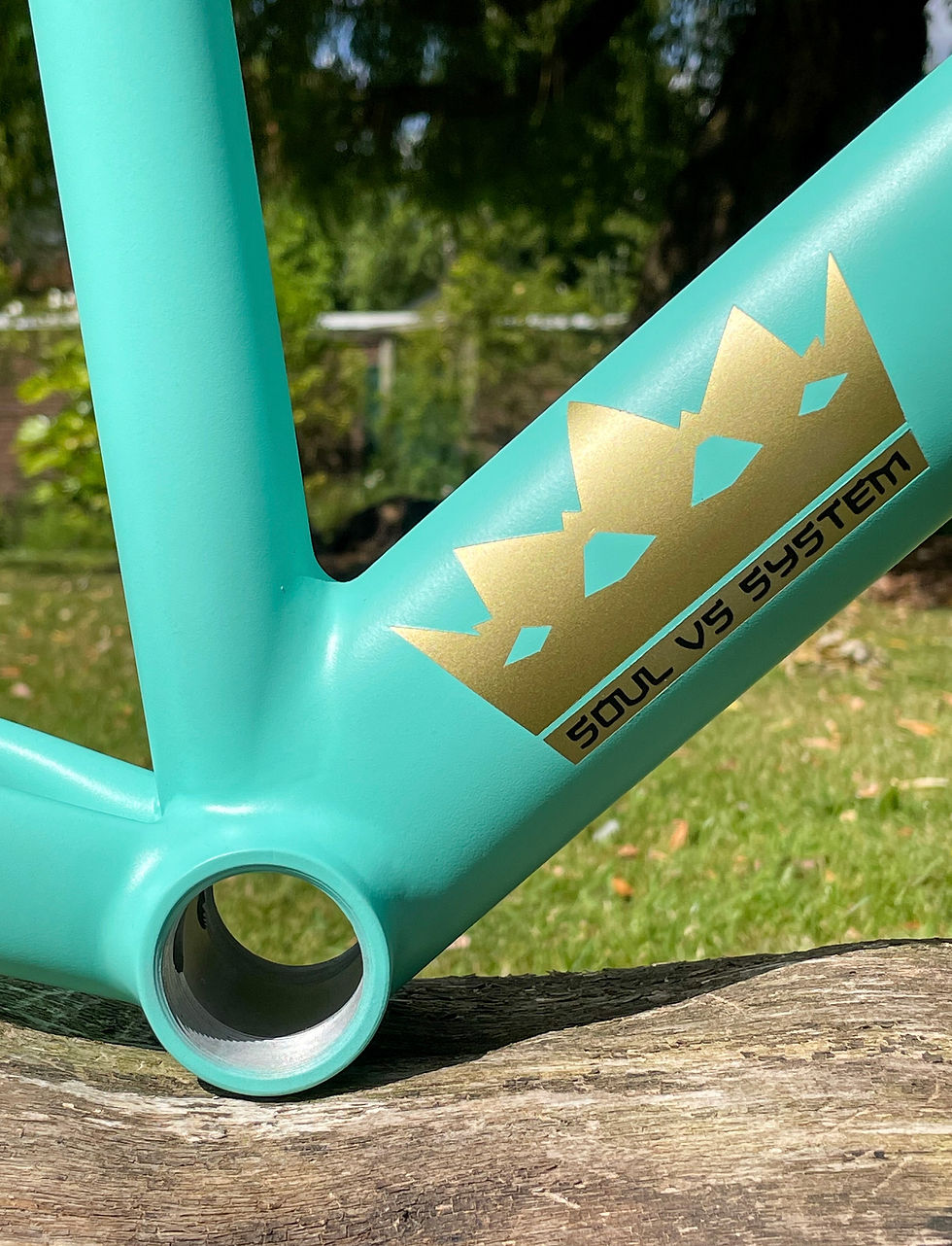

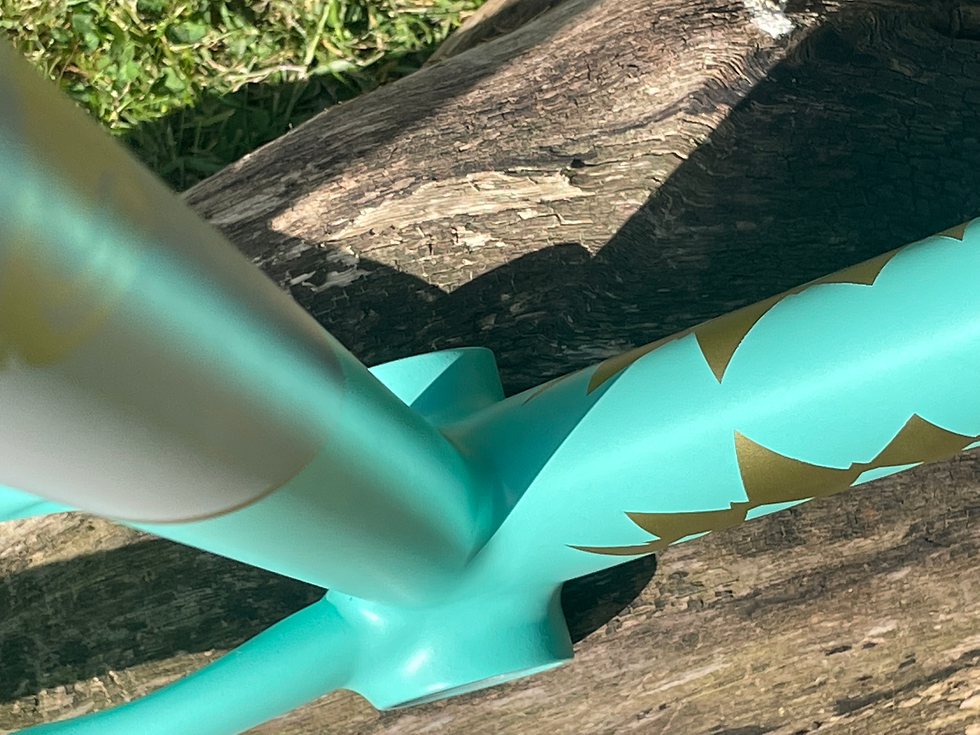

- Grouted and smoothed pipe welds
- Integrated headset (not included)
- Internal diameter seat tube 31,6mm
- 68mm Bottom bracket shell
- BSA cup thread 1.37 "x 24T
- Max Clearance at rear Tyre Section: 38mm
- Track hub 120mm
- Frame weight 1560g (+/- 50g)
- 34,9mm seat post clamp
- Fork: 1-1/2” to 1-1/8" tapered. Carbon fork w/ alloy steerer
Would suit 700c / QR Wheel Set-Ups...
Aluminium Tapered Steerer - Ahead Threadless - 28.6mm (1 1/8") Top x 40mm (1 1/2") Crown
Steerer Length: 300mm
Max Clearance at Tyre Section: 38mm
Rim Brake Only
For Quick-Release Axles - Standard 100mm Spacing
No Mudguard Eyes
Weight: 690g
GEOMETRIES
Unique and exclusive frame with geometries and lines specifically designed for fixed gear criterium racing. This frame is intentionally crafted without pre-drilled holes for a rear brake. Excellent performance on the track with the right balance of stiffness and strength combined with maximum reliability and light weight.
FRAME SIZE 54mm
CC - 490 mm
CF - 540 mm
F - 610 mm
L - 535 mm
P - 390 mm
T - 110 mm
